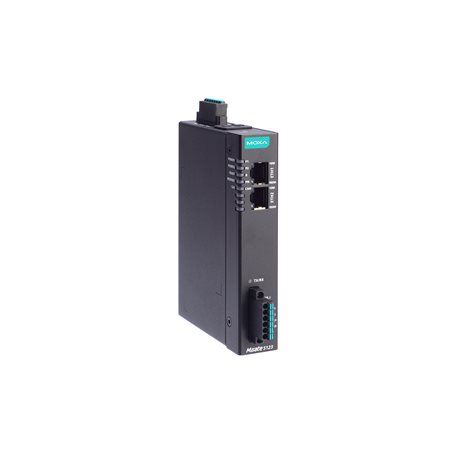

The MGate 5123 is an industrial Ethernet gateway for converting CANopen, J1939, and proprietary CAN (CAN 2.0A/B) to PROFINET network
communications. To integrate existing CAN–based devices onto a PROFINET network, use the MGate 5123 as a CAN Master to collect data and
exchange data with the PROFINET IO controller. All models are protected by a rugged and compact metal housing and are DIN-rail mountable. The
rugged design is suitable for industrial applications such as factory automation, process automation, and power applications.
The MGate 5123 gateways are provided with a web console to make configuration easy without having to install an extra utility. In addition, HTTPS
encryption of communication ensures higher network security.
In most data-acquisition applications, configuration of CANopen devices can be time-consuming and increase costs. The MGate 5123 gateways
provide EDS file import function and user can auto scan the CANopen devices to help complete the settings quickly. The MGate gateways provide
software-configurable termination resistor settings for CANbus to reduce efforts by eliminating the need to open the chassis.
The MGate 5123 gateways provide a variety of maintenance functions to reduce troubleshooting time and cost, including LED indicators, protocol
diagnostics, traffic monitor, and tag view. These tools help you capture and check data to easily identify the root cause of issues, especially during
the installation stage. The MGate gateways also come with status monitoring and fault protection functions. The status monitoring function notifies
a PLC/DCS/SCADA system when a CAN device gets disconnected or does not respond, in which case the process PLC/DCS gets the status of
each end device and then issues alarms to notify operators. The fault protection function executes actions pre-defined by the user when a host
gets disconnected to prevent the end devices from going offline for long periods of time.
- Simultaneous protocol conversions from CANopen, J1939, and proprietary CAN (CAN 2.0A/B) to PROFINET and SNMP
- Supports PROFINET I/O device and SNMP agent
- Supports CANopen master, J1939, and proprietary CAN (CAN 2.0A/B)
- Flexible deployment with Ethernet cascading and dual subnet
- Embedded traffic monitoring/diagnostic information for easy troubleshooting
- Easy device configuration via a web-based console
- microSD card for configuration backup/duplication
- Supports dual redundant DC power inputs and 1 relay output
- CAN port with 2-kV isolation protection
- -40 to 75°C wide operating temperature models available
- Developed according to IEC 62443-4-2 with Secure Boot
